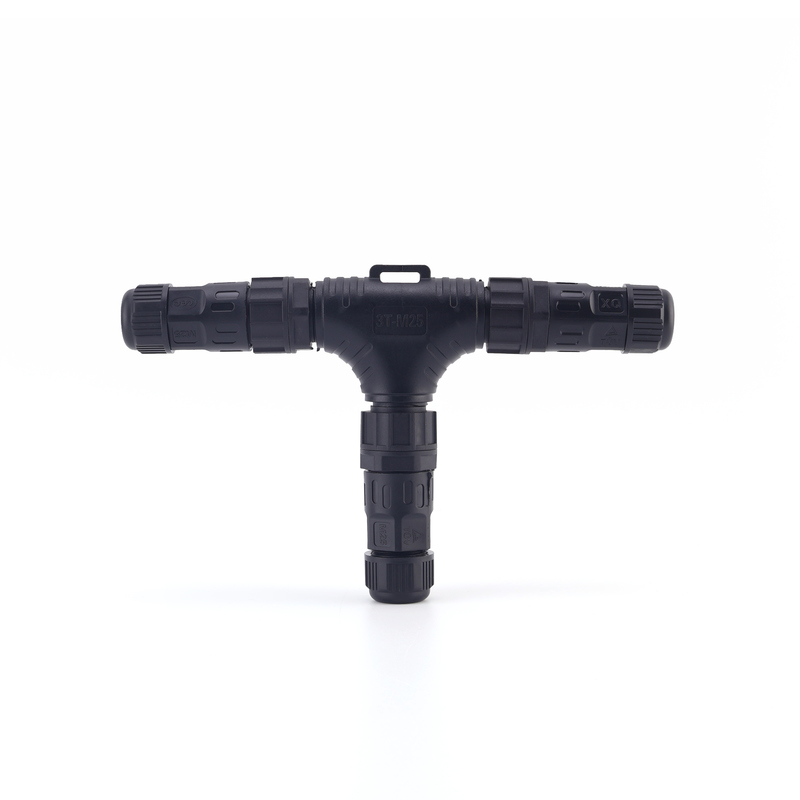

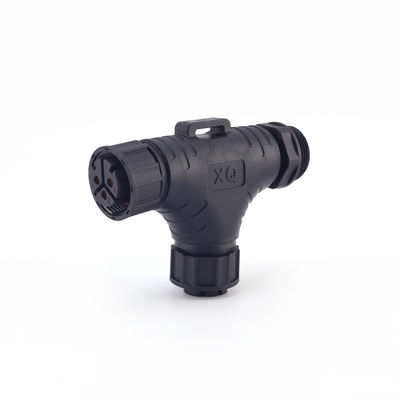

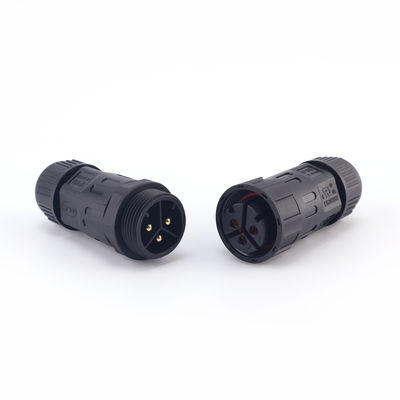

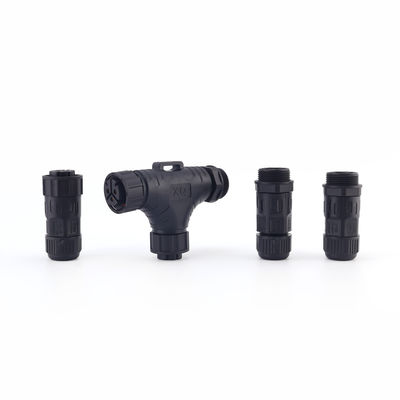

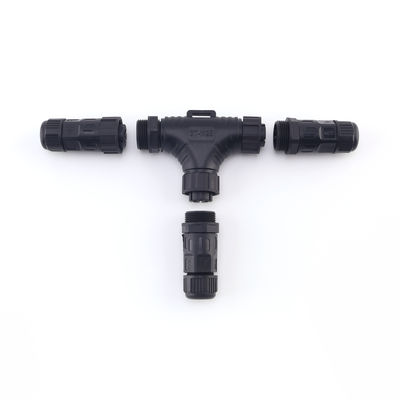

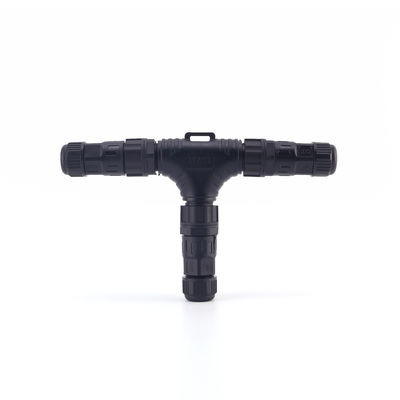

Assemble Screw Type Tee 3 Ways Waterproof Connectors, M25 IP68 High Voltage Outdoor LED Waterproof Power Plug
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Xiangqian |
| Chứng nhận: | UL |
| Số mô hình: | M25 tee |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 100pcs |
|---|
|
Thông tin chi tiết |
|||
| tên đầu nối: | M25 Vít IP68 T đầu nối hình dạng | Vật liệu: | PA66, nylon |
|---|---|---|---|
| Giới tính: | Nam nữ | Giấy chứng nhận: | UL, TUV, CQC |
| Đánh giá hiện tại: | 30A | Lớp chống thấm: | IP68 |
| Mẫu: | Miễn phí | Thời gian giao hàng: | 3-5 ngày |
Mô tả sản phẩm
Assemble Screw Type Tee 3 Ways Waterproof Connectors, M25 IP68 High Voltage Outdoor LED Waterproof Power Plug
The T-type, threaded M25 waterproof connector is made of high-quality PA66 nylon, offering high strength, high-temperature resistance, UV resistance, and excellent flame retardancy. Designed specifically for high-voltage, high-current power supply systems, this series features a three-way branching structure that supports multi-way power distribution, making it particularly suitable for complex outdoor wiring scenarios.
The threaded assembly and waterproof seal achieve an IP68 waterproof and dustproof rating, ensuring a stable and secure connection even in harsh environments such as heavy rain, humidity, dust, and prolonged outdoor exposure. Common applications include LED outdoor lighting projects, new energy equipment, traffic signal control, security monitoring, industrial electrical equipment, and marine power systems.
Product Features
- High Current Carrying Capacity: Available in 20A, 32A, and 50A specifications to meet the needs of high-power devices.
- Weather-Resistant: Made of nylon PA66, it's impact-resistant, age-resistant, and UV-resistant, making it suitable for long-term outdoor use.
- Safe and Stable: High insulation and an anti-electric shock design ensure safe power transmission.
- Easy Installation: Threaded locking structure and three-way branching design ensure quick and secure wiring.
- Excellent Protection: IP68 waterproof and dustproof, suitable for harsh climates and dusty environments.
Technical Parameters:
| Connector Type | M25 Screw Tee Waterproof Electric Connectors |
| Waterproof Grade | IP68 |
| Material | PA66 |
| Current Rate | 30A |
| Voltage Rate | 600V |
| Samples | Free |
| Delivery Time | 3-5 Days |
| Highlights | Outdoor LED Light Waterproof Connectors, IP68 T Type Waterproof PLug |
Electrical performance
| Contact resistance | Milliohm meter pin-by-pin testing | ≤ 10 mΩ |
| Insulation resistance | 100V DC, pin-to-pin / pin-to-shell | ≥ 100 MΩ |
| Hi-pot test | 500V AC / 60s | No breakdown, no flashover |
| Rated current | According to the number of cores and conductor specifications | 10A–20A stable pass |
| Rated voltage | Test by configuration | 250V–400V |
| Waterproof performance | Docking lock, 1 m water depth / 30 min | No water seepage, normal electrical performance |
| Plug and unplug life | Retest after 200 cycles | Electrical performance remains qualified |
| Pulling force/clamping force | Cable outlet tensile strength ≥ 50 N (φ≈8 mm cable reference | No loosening, good sealing |
After-sales service
- Quality Assurance: Provides a 12-month warranty, and any quality issues that arise during normal use can be replaced or repaired free of charge.
- Technical support: Professional engineers provide wiring guidance and electrical performance testing solutions to ensure worry free use for customers.
- Quick response: Provide feedback on customer issues within 24 hours and provide solutions within 7 working days.
- Customized services: Support customization needs such as current, voltage, number of cores, cable length, and shell color to meet different application scenarios.
FAQ
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000 types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2.Q:Is the sample avaliable?
A: Yes, but you need to pay the samples if you wanna more types samples, and it does not include freight. And we can refund the corresponding samples fee if you place a batch of the orders in the future.
3.Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.
4.Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union
5.Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
