Customized IP67 Waterproof Plug, M23 Panel Mount Female Electric Self-locking Waterproof Connector
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | Xiangqian |
| Chứng nhận: | UL |
| Số mô hình: | M23 |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 100pcs |
|---|
|
Thông tin chi tiết |
|||
| tên đầu nối: | IP67 M23 Đầu nối điện chống thấm | Vật liệu: | PA66, nylon |
|---|---|---|---|
| Giới tính: | Nam nữ | Giấy chứng nhận: | UL, CQC, TUV |
| Đánh giá hiện tại: | 15A | Lớp chống thấm: | IP67 |
| Mẫu: | Miễn phí | Thời gian giao hàng: | 3-5 ngày |
| Điện áp định mức: | 600V | ||
Mô tả sản phẩm

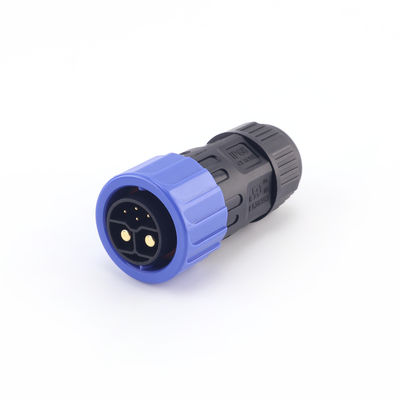

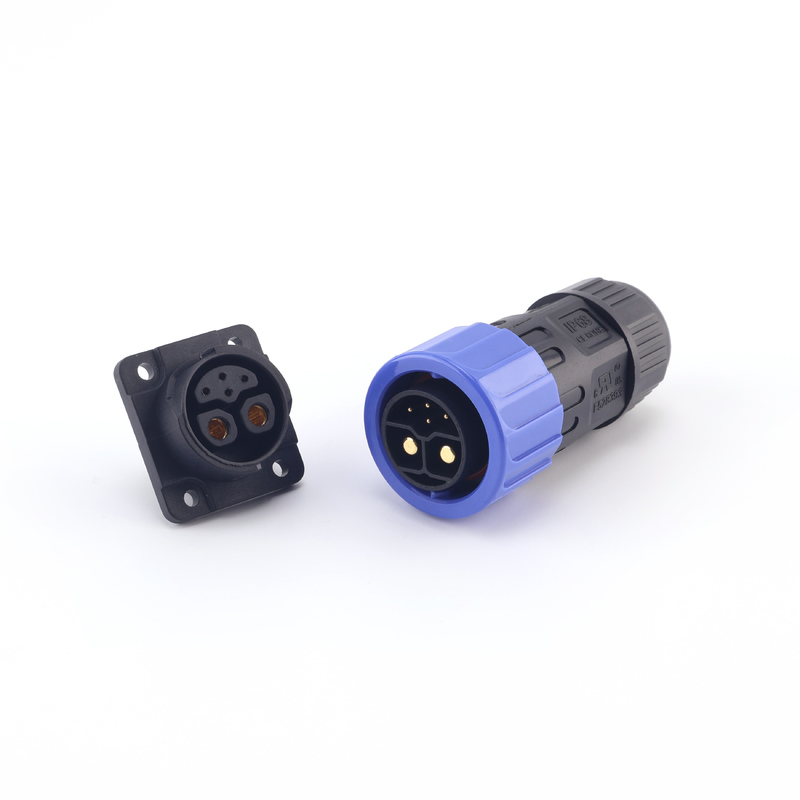

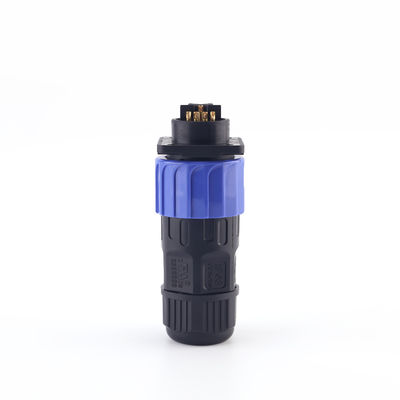

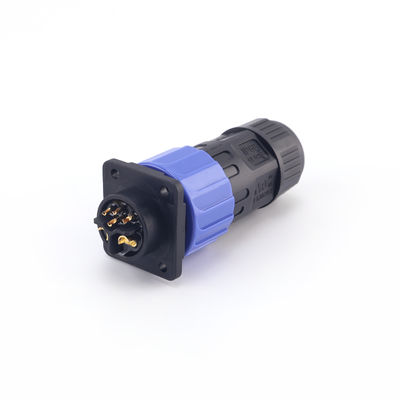

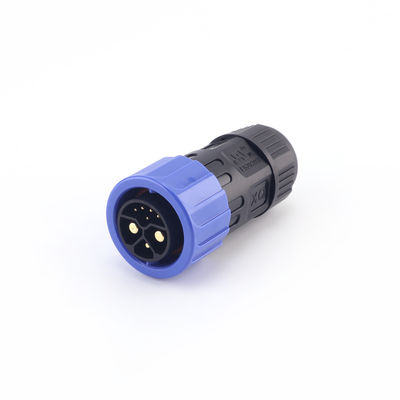

Customized IP67 Waterproof Plug, M23 Panel Mount Female Electric Self-locking Waterproof Connector
The self-locking M23 square female panel-to-male waterproof connector is a high-reliability connector designed specifically for outdoor power supply and industrial control applications. It features a square panel mounting system with a self-locking snap-on mechanism, ensuring quick docking and a secure connection, preventing loosening or removal due to vibration or strain. The housing is constructed of high-strength engineered nylon PA66 or a metal alloy, with a highly elastic silicone seal, achieving an IP67 rating and effectively preventing dust and water ingress, ensuring long-term stable operation.
This connector is commonly used in applications such as LED lighting, street light power supplies, automated machinery, new energy equipment, and communications and monitoring systems. It meets both power and signal transmission requirements and is suitable for long-term use in harsh outdoor environments.
Technical Parameters:
| Connector Type | M23 Push Lock Connectors |
| Waterproof Grade | IP67 |
| Material | PA66 |
| Current Rate | 15A |
| Voltage Rate | 600V |
| Samples | Free |
| Delivery Time | 3-5 Days |
| Highlights | IP67 Electric Waterproof Connector, Push Lock Waterproof Plug |
Product Highlights:
- Quick self-locking design for easy operation and efficient plugging and unplugging
- IP67 waterproof and dustproof rating, suitable for harsh outdoor environments
- Square panel mounting for stability and reliability, and high compatibility
- Multi-core options (2–12 cores) support mixed power and signal connections
- Strong weather resistance, UV resistance, high and low temperature resistance, and corrosion resistance
- High-quality copper alloy terminals for low contact resistance and excellent conductivity
Electrical performance
| Contact resistance | Milliohm meter pin-by-pin testing | ≤ 10 mΩ |
| Insulation resistance | 100V DC, pin-to-pin / pin-to-shell | ≥ 100 MΩ |
| Hi-pot test | 500V AC / 60s | No breakdown, no flashover |
| Rated current | According to the number of cores and conductor specifications | 10A–20A stable pass |
| Rated voltage | Test by configuration | 250V–400V |
| Waterproof performance | Docking lock, 1 m water depth / 30 min | No water seepage, electrical performance is normal |
| Plug and unplug life | Retest after 200 cycles | Electrical performance remains qualified |
| Pulling force/clamping force | Cable outlet tensile strength ≥ 50 N (φ≈8 mm cable reference | No loosening, good sealing |
After-Sales Service
- Warranty: Products come with a 12-month warranty from the date of manufacture. Any quality defects under normal use will be replaced or repaired free of charge.
- Technical Support: We provide installation guidance and selection recommendations to ensure safe and reliable use in our customers' projects.
- Customization: We support OEM/ODM solutions, offering customization options for cable count, current rating, housing color, cable length, and more.
- Quick Response: We respond to after-sales issues within 24 hours to ensure project progress.
- Sample Support: We provide sample testing to help customers verify product performance.
Certificates:
FAQ:
1. What is the protection rating of the M23 waterproof connector?
With a protection rating of up to IP67/IP68, it is effectively dustproof and waterproof, suitable for harsh environments such as rain, humidity, and long-term outdoor use.
2. What are the general electrical parameters of the M23 waterproof connector?
Rated voltage: 250V to 600V (depending on the number of pins)
Rated current: 10A to 30A
Contact resistance: ≤5mΩ
Insulation resistance: ≥1000MΩ
3. What pin counts are supported?
The M23 series offers a variety of specifications, ranging from 2 to 19 pins, to meet diverse needs for power transmission, signal transmission, and mixed interfaces.
4. What applications are suitable for it?
Widely used in automation equipment, servo motors, sensors, LED outdoor lighting, electrical control cabinets, new energy equipment, and other fields.
